Ubiquiti UniFi G2 Starter Kit Pro Zugangskontrollsystem

Artikelnr.: n2000021518

Herstellernr.: UA-G2-SK-Pro

EAN: 810084691830

Vorschau: Ubiquiti UniFi G2 Starter Kit Pro Zugangskontrollsystem

Ubiquiti UniFi G2 Starter Kit Pro Zugangskontrollsystem

AUF LAGER: sofort versandfertig
LIEFERZEIT: 1-2 Werktage

Liefer- und Zahlungsbedingungen

596,67 €*

inkl. MwSt. zzgl. Versand ab 4,99 €

Zugangskontrollsystem

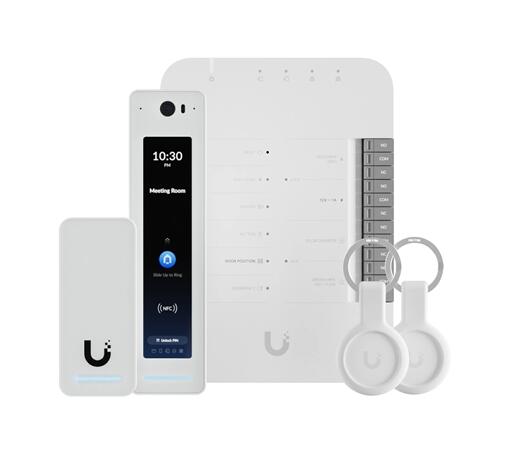

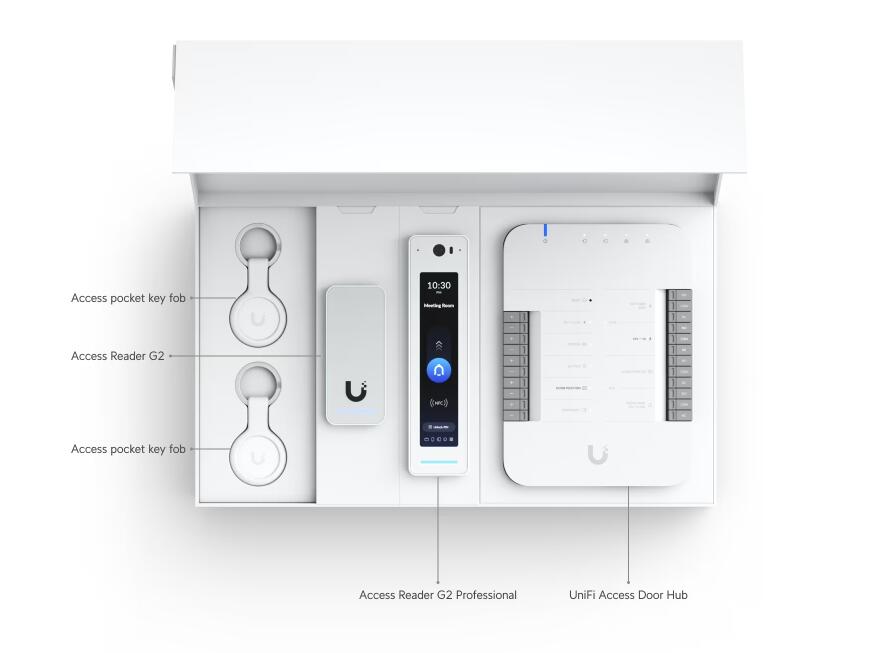

1x UniFi Access Hub, 1x UniFi Access Reader G2, 1x UniFi Access Reader G2 Professional, 2x UniFi Pocket Keyfob
mit Ethernet-Anschluss

Hersteller: Ubiquiti
Herst. Nr.: UA-G2-SK-Pro
Gewicht: 0.363 kg

Menü schließen

Zubehör

Produktbeschreibung

Technical Specifications

UA-Hub-Door
Mechanical

Dimensions

174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")

Weight

363 g (12.8 oz)

Enclosure material

Polycarbonate

Mounting material

Polycarbonate

Hardware

Networking interface

(5) 10/100/1000 Base-T

Power method

PoE++
UL 294 Power-limited Class 2 PSU
UL 60950/62368 LPS/PS2 PSU

Max. power consumption

Without PoE output: 30W
With PoE output: 50W

PoE input

50V DC, 1A

PoE output

PoE passthrough, (4) PoE, 50V DC, total 20W

Button

(1) Factory-reset

LEDs

System: white/blue
Output relays: white

Digital input

Request to exit/request to enter/remote release/door position sensor

Dry output relay

Lock: 30V DC, 1A
Aux: 30V DC, 1A

Powered output relay

Lock: 12V DC, 1A
Aux: 12V DC, 0.33A
12V DC, 0.33A

Operating environment

Indoor use only

Ambient operating temperature

0 to 40° C (32 to 104° F)

Ambient operating humidity

5 to 95% noncondensing

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: 1

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Door002, V01

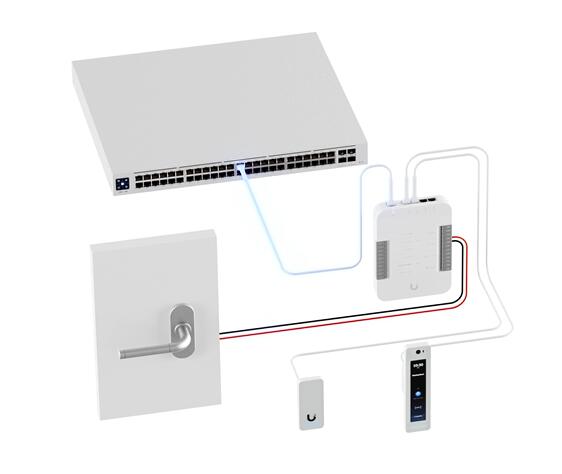

Wiring Information

Wiring gauge requirements (AWG)

Total length to device	Output load current at 12V DC
Total length to device	100mA	250mA	500mA	1A
6.1 m (20 ft)	22	22	22	18
15.2 m (50 ft)	22	22	22	18
30.5 m (100 ft)	22	22	18	18

UACC-Cable-DoorLockRelay (18 AWG) is recommended.

PoE cabling requirements

The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 24 AWG (0.21 mm ² ) for horizontal or riser cable.

LEDs

PoE in

Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware

PoE out

Off: Not connected or no data link
Steady blue: Connected and data link on

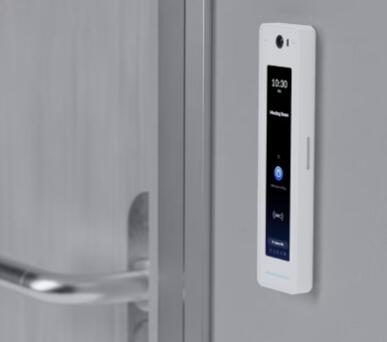

UA-G2-Pro
Mechanical

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Weight

136 g (4.8 oz)

Enclosure material

Polycarbonate, glass

Mount material

Aluminum alloy

Mounting

Wall, gang box

Weatherproofing

IP55

Hardware

Networking interface

(1) GbE RJ45 port

Connectivity

BLE 4.2
NFC

Power method

PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range

48V DC

Max. power consumption

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensor

Proximity sensor

Camera

4000 x 3000, 12 MP, 30 FPS

View angle

H: 96.67°, V: 123.15°, D: 153.11°

Microphone

Yes

Speaker

(1) 4 ohm, 1.5W

LEDs

R/G/B/W
Flash

Button

(1) Factory-reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC standards

ISO 14443A, 14443B, 15693

NFC technology

NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire

Operating environment

Outdoor use

Ambient operating temperature

Device: -30 to 45° C (-22 to 113° F)
Display:* -10 to 45° C (14 to 113° F)
*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v1.3.28)

Ambient operating humidity

5 to 90% noncondensing

Software information

The software version of a product can be checked at https://unifi.ui.com

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE cabling requirements

Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm ² ) for patch cords; 24 AWG (0.21 mm ² ) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G2-Pro/UA-G2-Pro-Black, V02

LED

System

Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
Strobing red: Emergency lockdown

UA-G2
Mechanical

Dimensions

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

Weight

82 g (2.9 oz)

Enclosure material

Polycarbonate, glass

Mounting

In wall, gang box

Weatherproofing

IP55

Hardware

Networking interface

(1) 10/100 MbE RJ45 port

Connectivity

BLE 4.1

Power method

PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range

48V DC

Max. power consumption

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Speaker

(1) 8 ohm, 0.7W

LEDs

R/G/B/W

Button

(1) Factory-reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC standards

ISO 14443A, 14443B, 15693

NFC technology

NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire

Operating environment

Outdoor use

Ambient operating temperature

-30 to 45° C (-22 to 113° F)

Ambient operating humidity

5 to 90% noncondensing

Software information

The software version of a product can be checked at https://unifi.ui.com

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

PoE cabling requirements

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G2/UA-G2-Black, V02

LED

System

Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
Strobing red: Emergency lockdown

UA-Pocket
Mechanical

Dimensions

84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")

Weight

16 g (0.56 oz)

Enclosure material

Polycarbonate, stainless steel

Weatherproofing

IP54

Hardware

NFC frequency

13.56 MHz

NFC technology

ISO/IEC 14443 Type A
MIFARE DESFire EV3 4K
UniFi Access Proprietary Security Protocol

Ambient operating temperature

-10 to 45° C (14 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certification

Technische Daten

PDF Datenblatt downloaden
