Artikelnr.:
15549087
Herstellernr.:
TL-SG2218
EAN:
6935364006419
Artikel lieferbar in ca. 1-3 Werktagen
- 16 × Gigabit-RJ45-Ports und 2 × Gigabit-SFP-Steckplätze
- Zero-Touch-Provisioning (ZTP)
- Zentralisierte Verwaltung
- L2 / L3 / L4-QoS und IGMP-Snooping
- Standalone-Verwaltung
- Hersteller: TP-Link
- Herst. Nr.: TL-SG2218
- Gewicht: 2.55 kg
-78%
UVP
91,40 €*
20,55 €*
-51%
UVP
29,99 €*
14,82 €*
Technische Daten
| HARDWARE-FUNKTIONEN | |
|---|---|
| Schnittstelle | • 16× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots |
| Anzahl Lüfter | Fanless |
| Spannungsversorgung | 100-240 V AC~50/60 Hz |
| Abmessungen (B*T*H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Montage | Rack Mountable |
| Maximale Leistungsaufnahme | 12.3 W (220 V/50 Hz) |
| Max Heat Dissipation | 41.97 BTU/hr |
| PERFORMANCE | |
|---|---|
| Switchingkapazität | 36 Gbps |
| Paketweiterleitungsrate | 26.8 Mpps |
| MAC-Adresstabelle | 8K |
| Jumbo-Frames | 9 KB |
| SOFTWARE-FUNKTIONEN | |
|---|---|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Layer2- und Layer2+-Funktionen | • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| Layer2-Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Zugriffskontrollliste | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
| Sicherheit | • IP-MAC-Port Binding - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - DHCPv6 Snooping - ND Detection - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • IP/Port/MAC based access control • 802.1X - Port based authentication - Mac based authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication and accountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Layer3-Funktionen | • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP • 316 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay • DHCP L2 Relay |
| Verwaltung | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| Erweiterte Funktionen | • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)* |
| SONSTIGES | |
|---|---|
| Zertifizierung | CE, FCC, RoHS |
| Verpackungsinhalt | • TL-SG2218 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Umgebung | • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Weiterführende Links zu "TP-Link TL-SG2218"
Fragen und Antworten zu diesem Artikel
Stelle hier die erste Frage zu diesem Produkt.
KUNDENSERVICE & SUPPORT
Tel. +49 2542 9558-250
Fax. +49 2542 9558-234
Mo-Fr 9-12 Uhr und 13-16 Uhr
E-Mail
Die mit einem * markierten Felder sind Pflichtfelder.
Wir verarbeiten deine, in diesem Formular eingegebenen, personenbezogenen Daten ausschließlich für die Beantwortung bzw. Verarbeitung deiner Anfrage. Diese werden dann, wie von dir angegeben, im Shop angezeigt. Wie wir weitere personenbezogene Daten verarbeite, siehst du in unserer Datenschutzerklärung

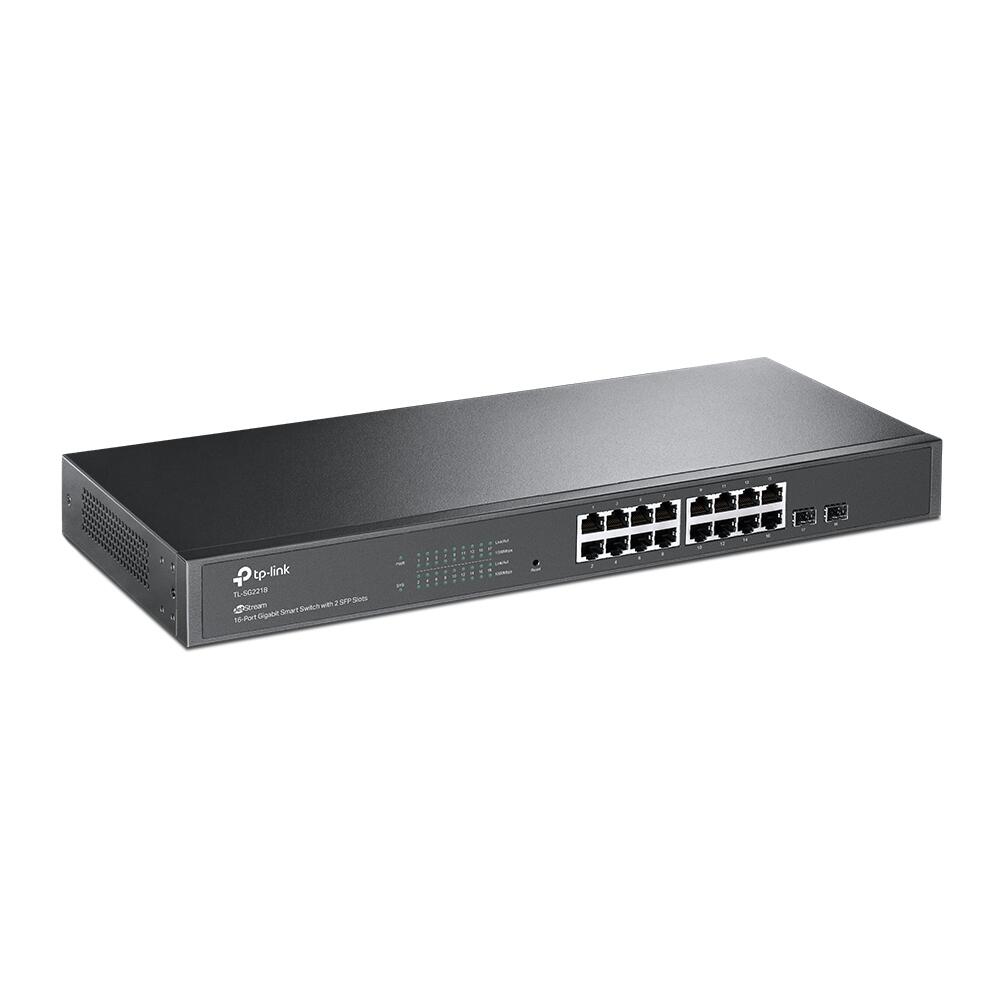

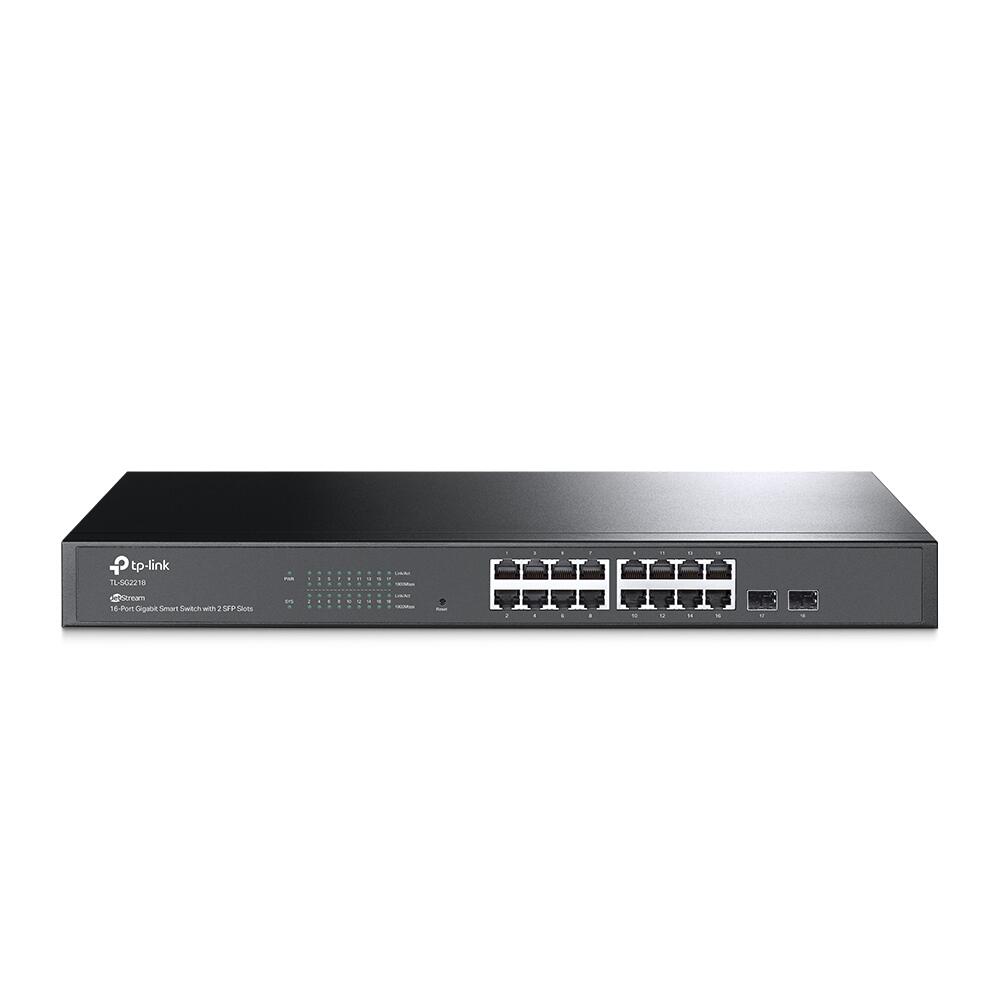

TP-Link JetStream TL-SG2218 16-Port Gigabit Smart Switch mit 2 SFP-Slots
