Artikelnr.:
2257673
Herstellernr.:
TL-SG3210
EAN:
6935364020972
AUF LAGER: sofort versandfertig
LIEFERZEIT: 1-2 Werktage
LIEFERZEIT: 1-2 Werktage

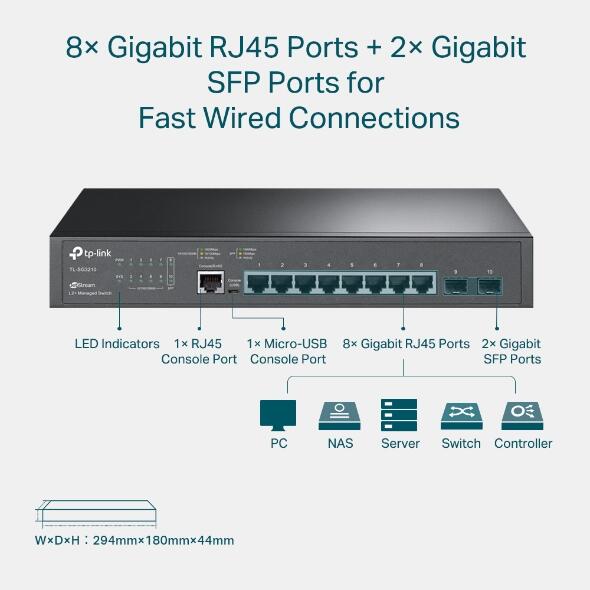

- 8 × Gigabit-RJ45-Ports und 2 × Gigabit-SFP-Steckplätze
- Lüfterlos
- L2/L3/L4-QoS und IGMP-Snooping optimieren die Voice-und Videoanwendung
- Zero-Touch-Provisioning (ZTP)
- IP-MAC-Port-Bindung, ACL, Port-Sicherheit, DoS-Verteidigung, Sturmkontrolle, DHCP-Snooping
- Hersteller: TP-Link
- Herst. Nr.: TL-SG3210
- Gewicht: 2.4 kg
Technische Daten
| HARDWARE-FUNKTIONEN | |
|---|---|
| Schnittstelle | • 8× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Anzahl Lüfter | Fanless |
| Spannungsversorgung | 100-240 V AC~50/60 Hz |
| Abmessungen (B*T*H) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Montage | Rack Mountable / Desktop |
| Maximale Leistungsaufnahme | 6.84 W (220 V/50 Hz) |
| Max Heat Dissipation | 23.33 BTU/h (220 V/50 Hz) |
| PERFORMANCE | |
|---|---|
| Switchingkapazität | 20 Gbps |
| Paketweiterleitungsrate | 14.89 Mpps |
| MAC-Adresstabelle | 8K |
| Jumbo-Frames | 9 KB |
| SOFTWARE-FUNKTIONEN | |
|---|---|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling - SP (Strict Priority) - WRR (Weighted Round Robin) - SP+WRR • Bandwidth Control - Port/Flow based Rating Limiting • Smoother Performance • Action for Flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark |
| Layer2- und Layer2+-Funktionen | • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1d STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect • Loopback Detection - Port-based - VLAN based • Flow Control - 802.3x Flow Control - HOL Blocking Prevention • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Tx/Rx/Both |
| Layer2-Multicast | • Supports 511 (IPv4, IPv6) IGMP groups • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave - IGMP Snooping Querier - IGMP Authentication • IGMP Authentication • MVR • MLD Snooping - MLD v1/v2 Snooping - Fast Leave - MLD Snooping Querier - Static Group Config - Limited IP Multicast • Multicast Filtering: 256 profiles and 16 entries per profile |
| VLAN | • VLAN Group - Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 12 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • GVRP • VLAN VPN (QinQ) - Port-Based QinQ - Selective QinQ • Voice VLAN |
| Zugriffskontrollliste | • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - Fragment - IP Protocol - TCP Flag - TCP/UDP Port - DSCP/IP TOS - User Priority • Combined ACL • Packet Content ACL • IPv6 ACL • Policy - Mirroring - Redirect - Rate Limit - QoS Remark • ACL apply to Port/VLAN |
| Sicherheit | • IP-MAC-Port Binding - DHCP Snooping - ARP Inspection - IPv4 Source Guard • IPv6-MAC-Port Binding - DHCPv6 Snooping - ND Detection - IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio/pps control mode • IP/Port/MAC based access control • 802.1X - Port based authentication - Mac based authentication - VLAN Assignment - MAB - Guest VLAN - Support Radius authentication and accountability • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet (v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP |
| Layer3-Funktionen | • 16 IPv4/IPv6 Interfaces • Static Routing - 48 static routes • Static ARP • 316 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay • DHCP L2 Relay |
| Verwaltung | • Web-based GUI • Command Line Interface (CLI) through console port, telnet • SNMPv1/v2c/v3 - Trap/Inform - RMON (1, 2, 3, 9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log |
| Erweiterte Funktionen | • Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • ZTP (Zero-Touch Provisioning)* |
| SONSTIGES | |
|---|---|
| Zertifizierung | CE, FCC, RoHS |
| Verpackungsinhalt | • TL-SG3210 Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| Umgebung | • Operating Temperature: 0–45 ? (32–113 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
